PartNet: A Recursive Part Decomposition Network for Fine-grained and Hierarchical Shape Segmentation

Fenggen Yu1,  Kun Liu1,  Yan Zhang1, Chenyang Zhu2,  Kai Xu2

1Nanjing University,   2National University of Defense Technology

(Fenggen and Kun are joint first authors; Kai is corresponding author.)

CVPR 2019

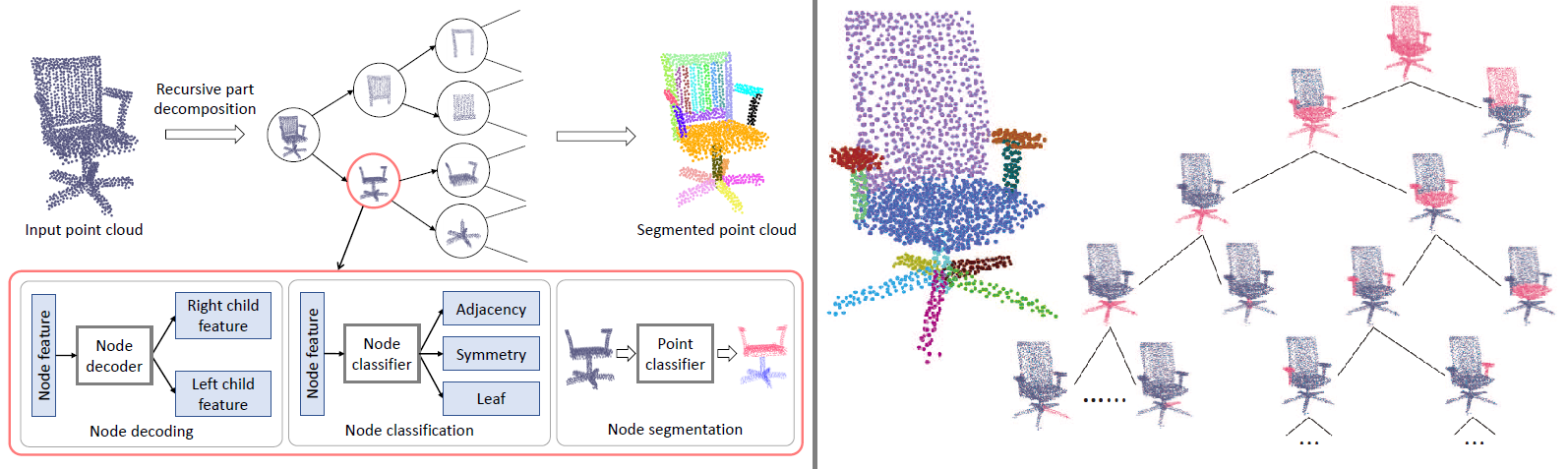

Abstract: Deep learning approaches to 3D shape segmentation are typically formulated as a multi-class labeling problem. Existing models are trained for a fixed set of labels, which greatly limits their flexibility and adaptivity. We opt for topdown recursive decomposition and develop the first deep learning model for hierarchical segmentation of 3D shapes, based on recursive neural networks. Starting from a full shape represented as a point cloud, our model performs recursive binary decomposition, where the decomposition network at all nodes in the hierarchy share weights. At each node, a node classifier is trained to determine the type (adjacency or symmetry) and stopping criteria of its decomposition. The features extracted in higher level nodes are recursively propagated to lower level ones. Thus, the meaningful decompositions in higher levels provide strong contextual cues constraining the segmentations in lower levels. Meanwhile, to increase the segmentation accuracy at each node, we enhance the recursive contextual feature with the shape feature extracted for the corresponding part. Our method segments a 3D shape in point cloud into an unfixed number of parts, depending on the shape complexity, showing strong generality and flexibility. It achieves the stateof- the-art performance, both for fine-grained and semantic segmentation, on the public benchmark and a new benchmark of fine-grained segmentation proposed in this work. We also demonstrate its application for fine-grained part refinements in image-to-shape reconstruction.

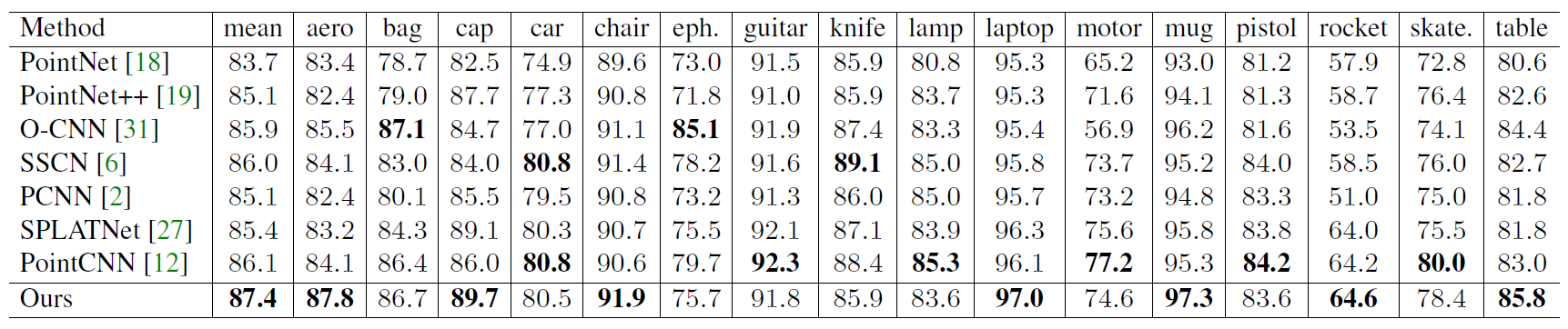

Although PartNet is designed for fine-grained segmentation, the recursive decomposition should work even better for semantic segmentation since the latter is usually a much coarser-level segmentation. Comparison of semantic segmentation on the ShapeNet part dataset (Metric is part-wise IoU (%)). For semantic segmentation, PartNet can be trained with a consistent hierarchy for all shapes in a category. The training is can be done with any hierarchy that is consistent across all training shapes. Therefore, we do not need an extra process for hierarchy construction. Taking any random hierarchy of one training shape as a “template”, we unify the hierarchies of all the other shapes based on the semantic part labels. Therefore, PartNet does not require an extra supervision of part hierarchy for training for semantic segmentation.
    title = {PartNet: A Recursive Part Decomposition Network for Fine-grained and Hierarchical Shape Segmentation},
= {Fenggen Yu and Kun Liu and Yan Zhang and Chenyang Zhu and Kai Xu},
    booktitle = {CVPR},
    pages = {to appear},
year = {2019}
