Learning Physically Realizable Skills for Online Packing of General 3D Shapes


Hang Zhao,  Zherong Pan, Yang Yu, Kai Xu*


ACM Transactions on Graphics (to be presented at SIGGRAPH 2024)



teaser

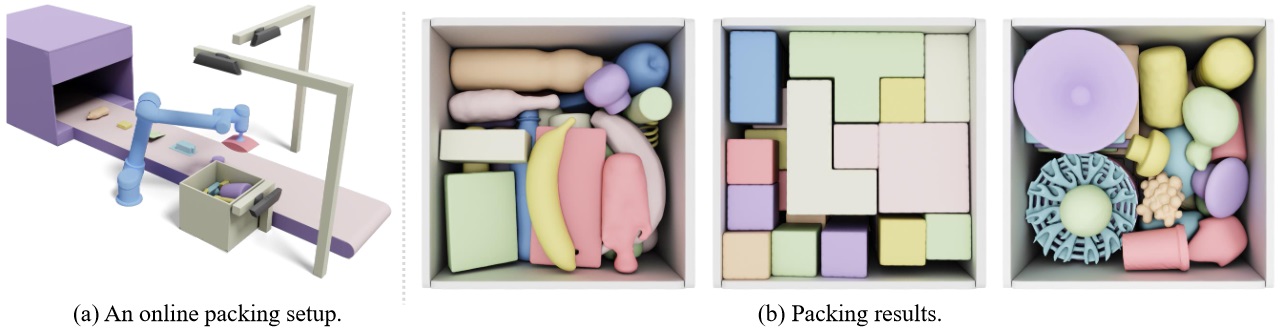

We develop a learning-based solver for packing arbitrarily-shaped objects in a physically realizable problem setting. This figure shows an online virtual packing setup (a), where objects move on a conveyor belt at a constant speed. Three RGB-D cameras are provided for observing the top and bottom surfaces of the incoming object as well as packed object configurations inside the container. Within a limited time window, the robot has to decide on the placement for the incoming object in the target container for tight packing. Packing results on 3D shapes with different geometric properties are shown in (b).



Abstract

We study the problem of learning online packing skills for irregular 3D shapes, which is arguably the most challenging setting of bin packing problems. The goal is to consecutively move a sequence of 3D objects with arbitrary shapes into a designated container with only partial observations of the object sequence. Meanwhile, we take physical realizability into account, involving physics dynamics and constraints of a placement. The packing policy should understand the 3D geometry of the object to be packed and make effective decisions to accommodate it in the container in a physically realizable way. We propose a Reinforcement Learning (RL) pipeline to learn the policy. The complex irregular geometry and imperfect object placement together lead to huge solution space. Direct training in such space is prohibitively data ntensive. We instead propose a theoretically-provable method for candidate action generation to reduce the action space of RL and the learning burden. A parameterized policy is then learned to select the best placement from the candidates. Equipped with an efficient method of asynchronous RL accelera- tion and a data preparation process of simulation-ready training sequences, a mature packing policy can be trained in a physics-based environment within 48 hours. Through extensive evaluation on a variety of real-life shape datasets and comparisons with state-of-the-art baselines, we demonstrate that our method outperforms the best-performing baseline on all datasets by at least 12.8% in terms of packing utility.




Paper
Paper PDF














PDF




Slides
Conference Slides



PDF



Video


Images
result1

Our policy learning architecture. The input to our method is the surface point cloud (a) of the incoming object and the heightmap (b) of continuous object configurations in the target container. Our neural network policy uses PointNet (d) and CNN (e) to extract features of object and container respectively for 3D geometry understanding. Our geometric-inspired candidate generalization method would then provide a set of placements (c), each encoded as a feature using an MLP (f). Finally, our policy which is a dueling network ranks the placement candidates via the state-action value function, and the best candidate is selected for execution. The continuous object configurations inside the target container are governed by a physics simulator (g). The packing process continues with receiving the next observation until the container is full. Our RL algorithm trains the ranking policy by asynchronously sampling trajectories and updating policy parameters with granted reward signals.



result2

Visualization of various packing methods on three datasets. Each test instance is labeled with its utility/number of packed objects. Our learned policy consistently exhibits tight packing and achieves the best performance.



result3

Results generated by our online packing policies. Their utility and number of packed objects are labeled.




Thanks
The authors acknowledge the anonymous reviewers for their insightful comments and valuable suggestions. Thanks are also extended to Yin Yang, Qijin She, Juzhan Xu, Lintao Zheng, and Jun Li for their helpful discussions. Hang thanks Tong Zhang with heartfelt appre- ciation for her support, understanding, and encouragement. This work is supported by the National Key Research and Development Program of China (2018AAA0102200), and the National Natural Science Foundation of China (62132021, 62102435).



Code
Data

The GitHub repository hosting the full source code and dataset.



Bibtex
@article {zhao_tog23,
    title = {Learning Physically Realizable Skills for Online Packing of General 3D Shapes},
    author = {Hang Zhao and Zherong Pan and Yang Yu and Kai Xu},
    journal = {ACM Transactions on Graphics},
    volume = {42},
    number = {5},

year = {2023}
}
